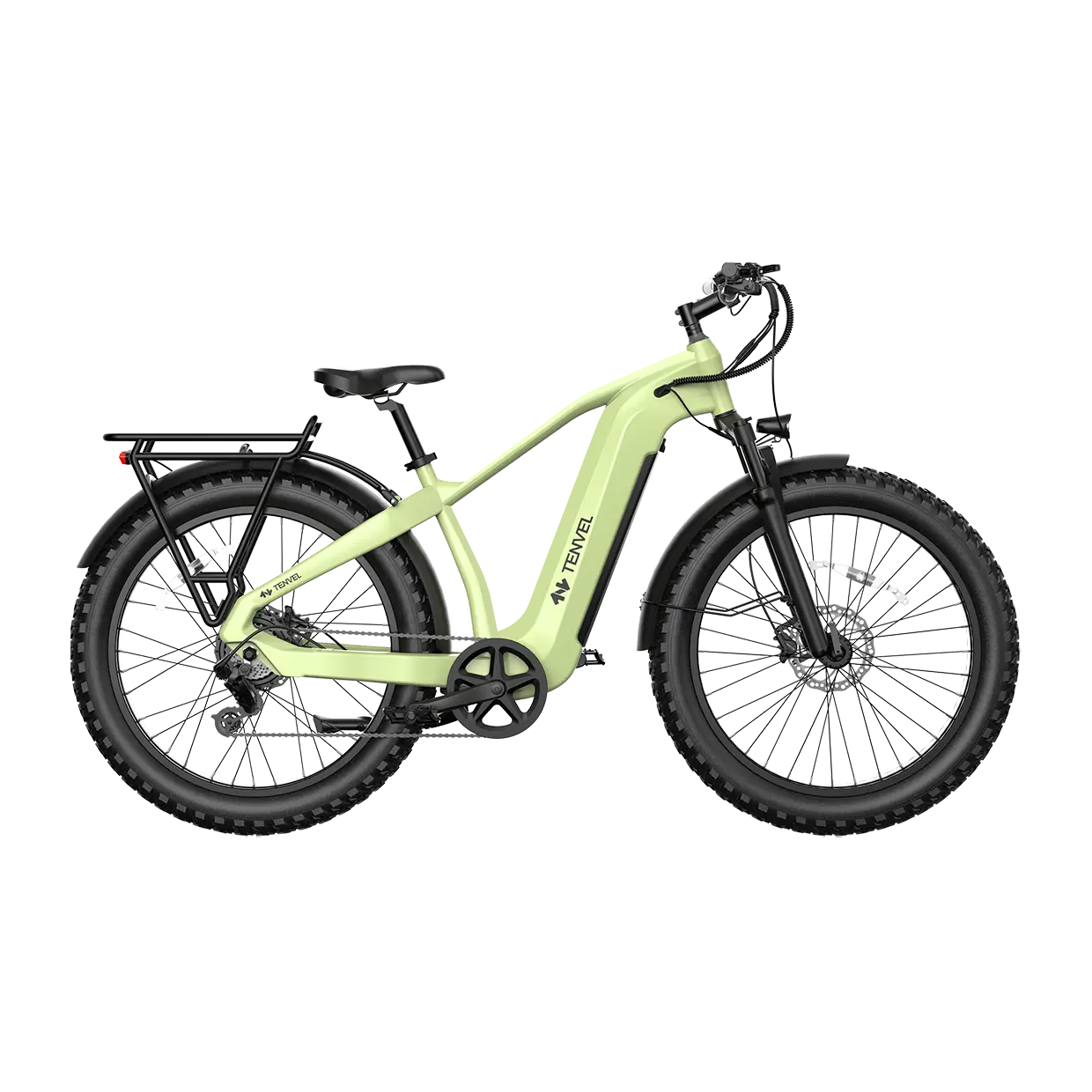

TENVELS Tumb & Plezo Fat Tire ebike
Datasheet
Bike Dimensions
1920 × 700 × 1150 mm
Frame Type
Step-Through/Step-over
Net Weight
86 lbs (about 39 kg)
Max Load Capacity
330 lbs (about 150 kg, including rider and load)
Rear Rack Capacity
110 lbs (about 50 kg)
Frame
Aluminum alloy
Front Fork
80 mm suspension fork with lockout and adjustable spring
Top Speed
28 mph (approx. 45 km/h)
Throttle Range
50 miles (about 80 km) on throttle mode
Pedal Assist Range
75 miles (about 120 km) on pedal assist mode
Brake Rotor
180 mm rotors, front and rear
Tire
26 × 4.0 inch e-bike tires
Crankset
Aluminum alloy, 170 mm crank arms
Chainring
46T
Chain
KMC 7-speed
Freewheel
7-speed
Rear Derailleur
SHIMANO 7-speed
Shifter
SHIMANO 7-speed
Handlebars
Aluminum alloy handlebar, Ø22.2 mm, 680 mm length
Saddle
Comfortable ergonomic one-piece saddle
Seat Post
Aluminum alloy seatpost, Ø30.9 mm, 300 mm length
